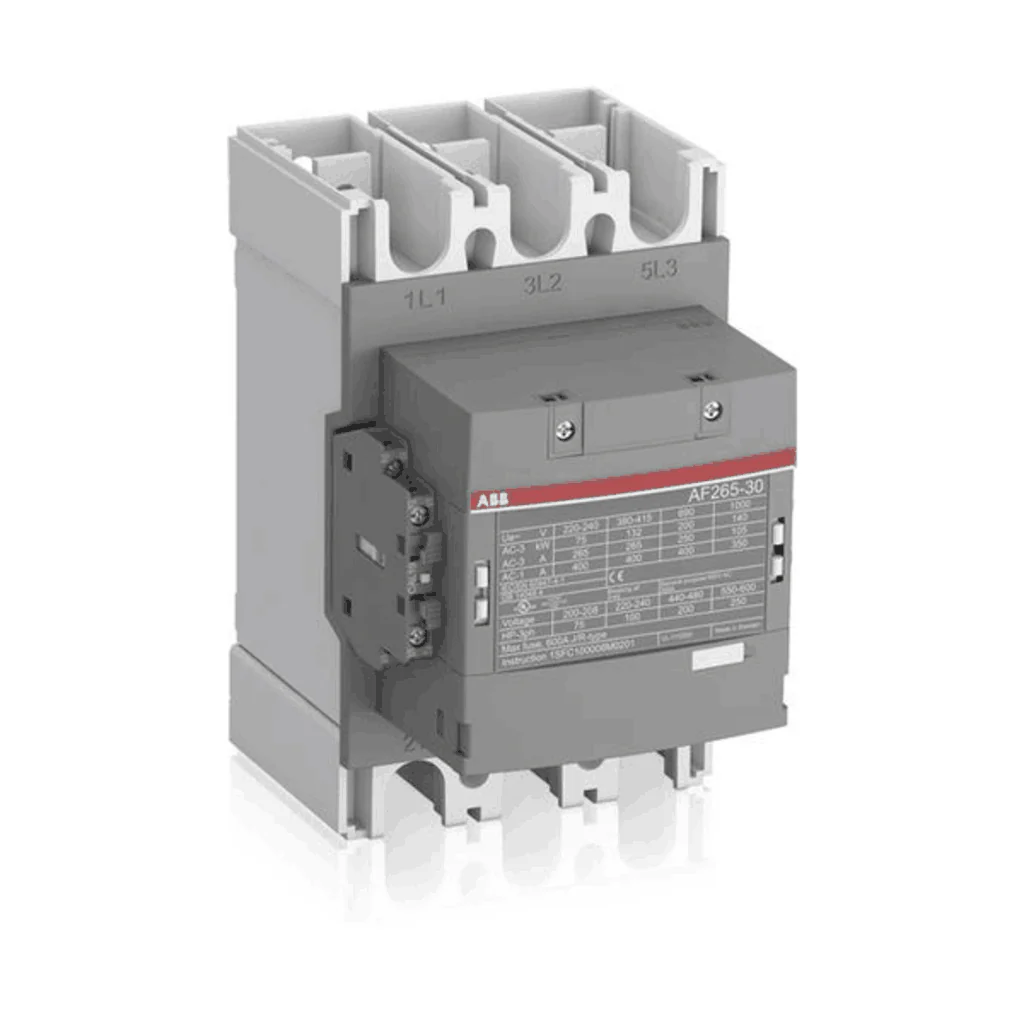

ABB AC Type Contactor Three Pole AF265-30-11

Product Description

• A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V

• Number of Main Contacts NO : 3

• Number of Main Contacts NC : 0

• Number of Auxiliary Contacts NO : 1

• Number of Auxiliary Contacts NC : 1

• Rated Operational Voltage : Main Circuit 1000 V

• Rated Frequency (f) : Main Circuit 50/60 Hz

• Conventional Free-air Thermal Current (I_th) : acc. to IEC 60947-4-1, Open Contactors q = 40 °C 350 A

• Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1 : 8 x Ie AC-3

• Rated Making Capacity AC-3 acc. to IEC 60947-4-1: 10 x Ie AC-3

• Short-Circuit Protective Devices : gG Type Fuses 500 A

• Rated Impulse Withstand Voltage (U_imp) : Main Circuit 8 kV

• Mechanical Durability : 5 million

• Maximum Mechanical Switching Frequency : 300 cycles per hour

• Maximum Operating Altitude Permissible : 3000 m

• Terminal Type : Main Circuit-Bars

• Product Net Width : 140.0 mm

• Product Net Depth / Length : 180.0 mm

• Product Net Height : 225.0 mm

• Product Net Weight : 4.640 kg

Product Specification

Product Id	Description	Voltage Range
1SFL547002R1111	AF265-30-11 coil 24-60V 50Hz 1NO+1NC Contactor A Series	24-60V
1SFL547002R1211	AF265-30-11 coil 48-130V 50Hz 1NO+1NC Contactor A Series	48-130V
1SFL547002R1311	AF265-30-11 coil 100-250V 50Hz 1NO+1NC Contactor A Series	100-250V
1SFL547002R1411	AF265-30-11 coil 250-500V 50Hz 1NO+1NC Contactor A Series	250-500V
