Product Specification
|
Brand |
ABB |
|
Product Type |
Residual Current Device |
|
Product Code |
1SDA067122R1 |
|
Technical |
|
|
Frame |
XT1 |
|
Configuration Type |
Loose or configurable |
|
Number of Poles |
3 |
|
Product Main Type |
Accessories for Tmax T |
|
Standards |
IEC 60947-2 |
|
Suitable For |
XT1 |
|
Suitable For Product Class |
SACE Tmax XT |
|
Description |

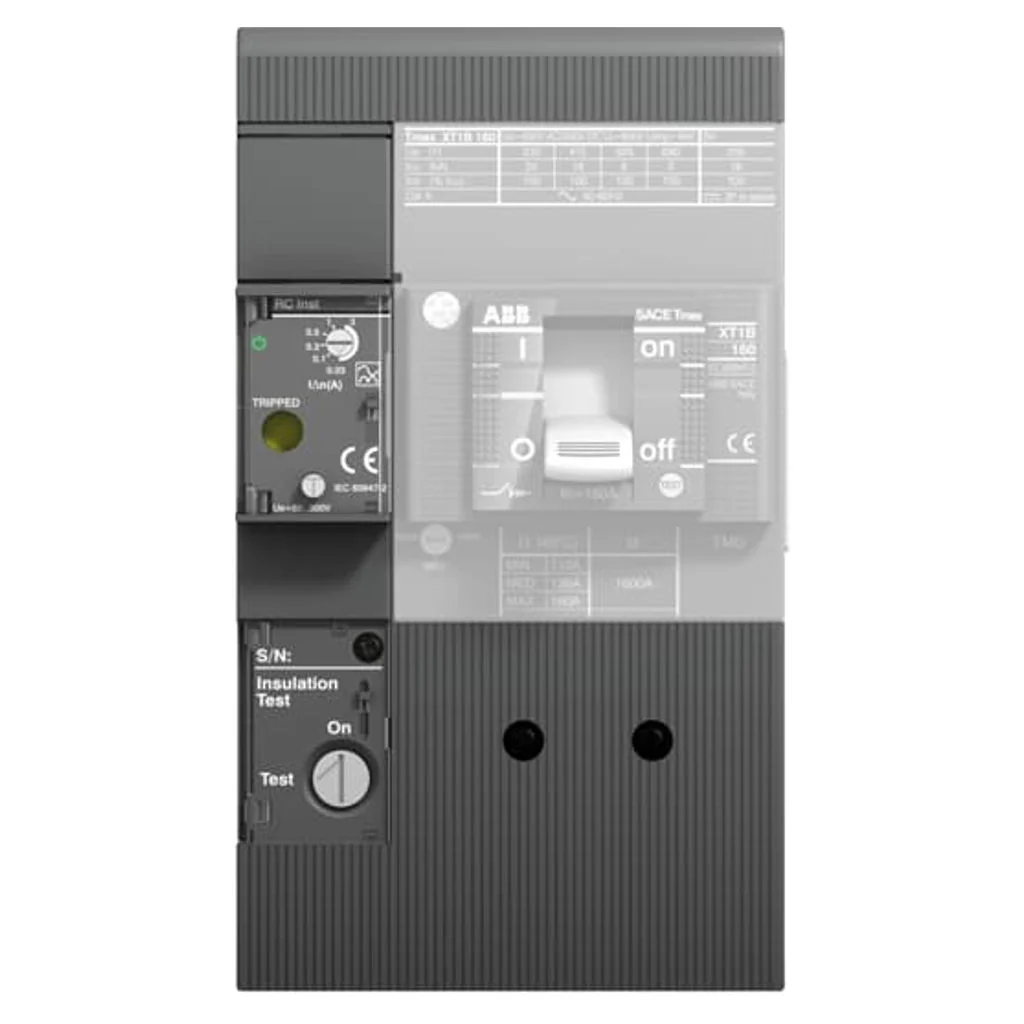

RESIDUAL CURRENT RELEASE RC INST HV 85...690V AC FOR C.BREAK. FIXED THREE-POLE XT1 |
|
Dimensions |
|
|
Product Net Width |
210 mm |
|
Product Net Height |
170 mm |
|
Product Net Depth / Length |
240 mm |
|
Product Net Weight |
1.093 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
