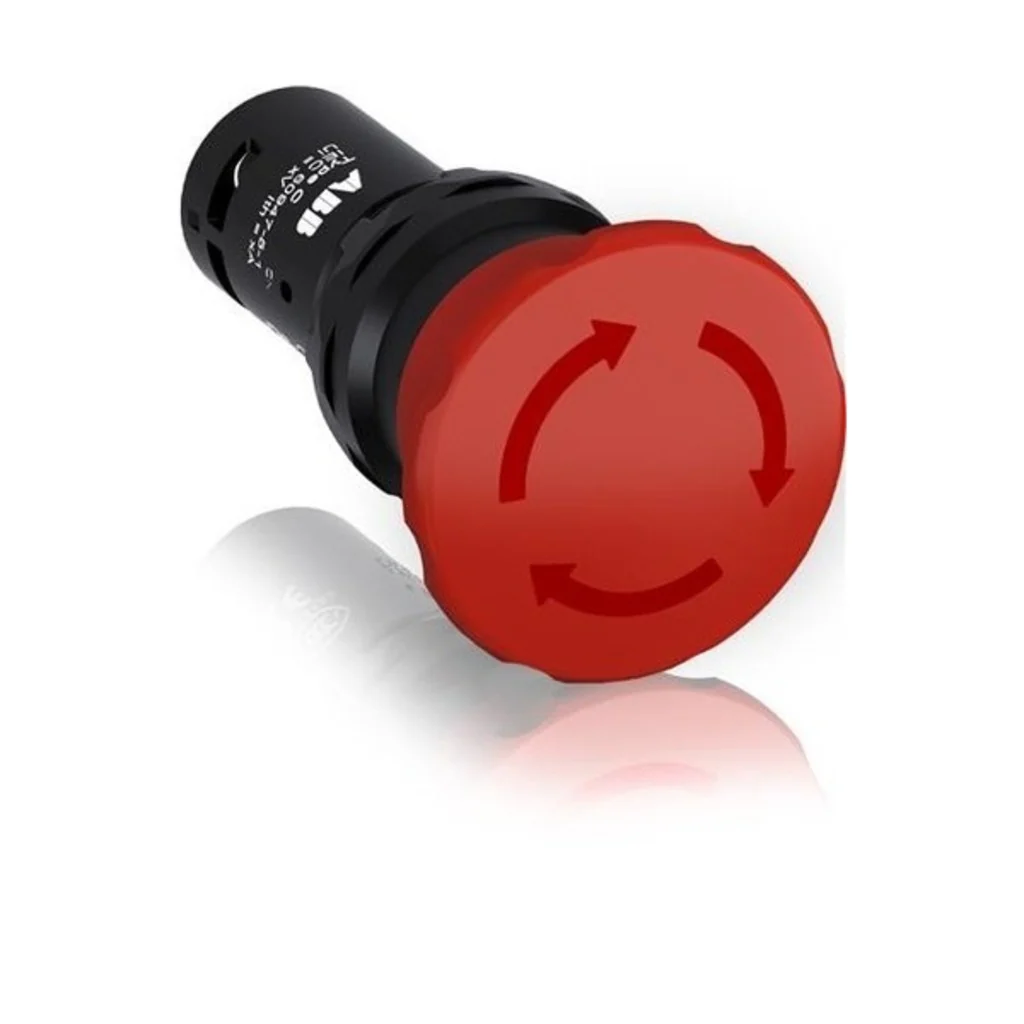

ABB Twist Release Emergency Stop Push Button Compact Range Pilot Light 40 mm

Product Description

• ABB Pilot Devices offers both a Modular and Compact Range of Pushbuttons. Both feature the same front-of-panel design and appear consistent when combined

• Compact Range features an all-in-one construction and rugged design for added simplicity and ease of installation

• Product Main Type : CE4T

• Product Name : Emergency Stop

• Product Range : Compact

• Product Type : CE

• Actuator Type : Mushroom 40 mm

• Bezel Material : n/a

• Colour : Red

• Degree of Protection : Front IP69K , Terminals IP20

• Function : Twist release

• Illumination : Non-illuminated

• Mechanical Durability : 0.5 million

• Number of Auxiliary Contacts NC : 1

• Rated Frequency (f) : Supply Circuit 50 Hz , Supply Circuit 60 Hz

• Rated Operational Current AC-15 (I_e) : (24 / 127 V) 1.5 A , (220 / 240 V) 1 A

• Rated Operational Current DC-13 (I_e) : (24 V) 0.3 A , (125 V) 0.2 A

• Product Net Width : 0.040 m

• Product Net Height : 0.040 m

• Product Net Depth / Length : 0.073 m

• Product Net Weight : 0.036 kg

Product Specification

Product Id	Type	Block
1SFA619550R1041	CE4T-10R-01	1 NC
1SFA619550R1051	CE4T-10R-02	2 NC
1SFA619550R1071	CE4T-10R-11	1NO+1NC
