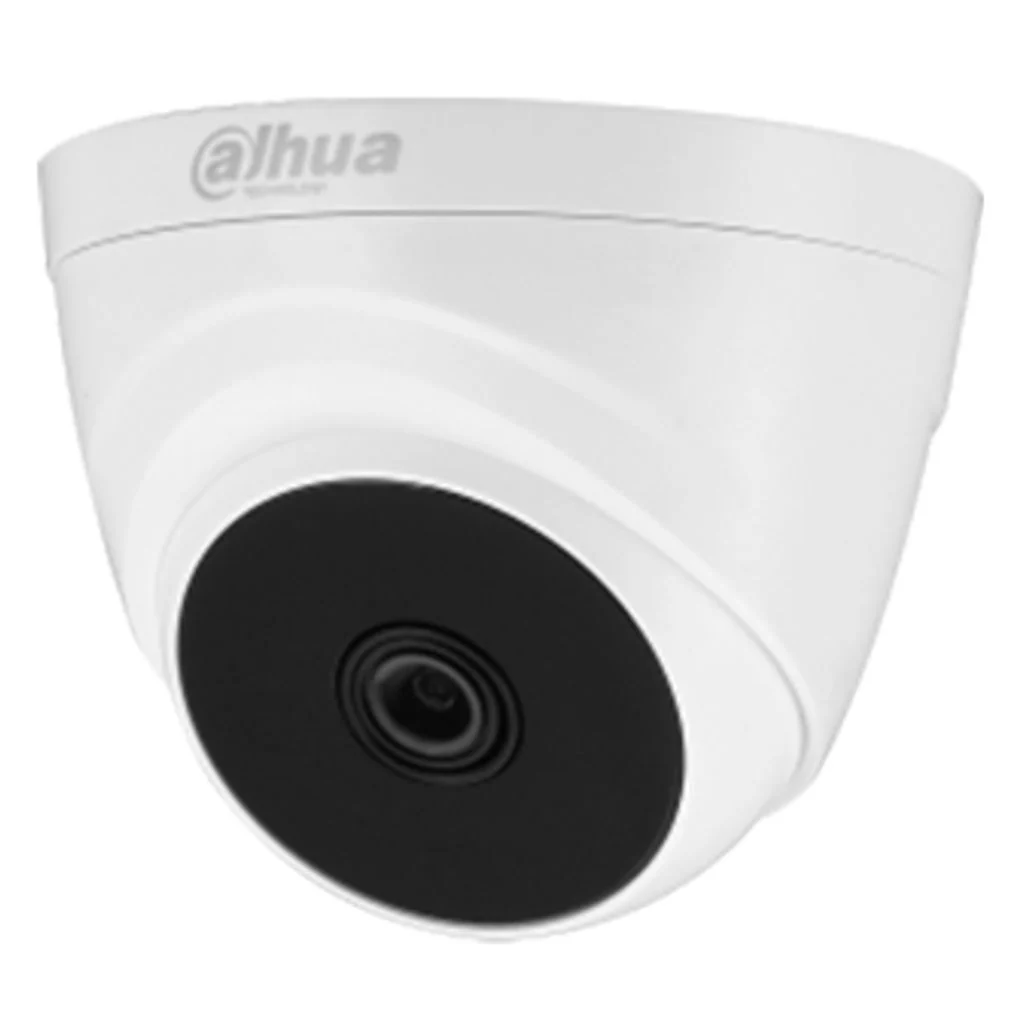

Dahua 2 MP HDCVI IR Smart Dome Camera DH-HAC-T1A21P-U-IL-A

Brand

Dahua

Product Type

Dome Camera

Product Model

DH-HAC-T1A21P-U-IL-A

Camera

Image Sensor

2 MP CMOS

Maximum Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Minimum Illumination

0.02 [email protected] (Color, 30 IRE)
0.002 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

20 m (65.62 ft)

Illuminator On/Off Control

Auto

Illuminator Number

1 (IR light) Pan: 0°–360°

Angle Adjustment

Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Maximum Aperture

F2.0

Field Of View

2.8 mm: H: 100°; V: 54°; D: 117°
3.6 mm: H:80°; V: 43°; D: 94°
6 mm: H: 43°; V: 24°; D: 50°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.8 m (2.62 ft)
6 mm: 2.8 m (9.19 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

44.7 m
(146.65 ft)

17.9 m
(58.73 ft)

8.9 m
(29.20 ft)

4.5 m
(14.76 ft)

3.6 mm

55.0 m
(180.45 ft)

22.0 m
(72.18 ft)

11.0 m
(36.09 ft)

5.5 m
(18.04 ft)

6 mm

102.9 m
(337.60 ft)

41.1 m
(134.84 ft)

20.6 m
(67.59 ft)

10.3 m
(33.79 ft)

Video

Video Frame Rate

CVI:PAL: 1080p@25 fps
NTSC: 1080p@30 fps
AHD:PAL: 1080p@25 fps
NTSC: 1080p@30 fps
TVI:PAL: 1080p@25 fps
NTSC: 1080p@30 fps

CVBS:PAL: 960H;
NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; DWDR

WDR

DWDR

White Balance

Auto

Gain Control

Auto

Noise Reduction

2D NR

Illumination Mode

Smart IR

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one
BNC port

Power

Power Supply

12 VDC ± 30%

Power Consumption

Maximum 2.3 W (12 VDC, IR on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Anti-Corrosion Level

Basic Protection

Structure

Casing Material

Plastic

Installation

Wall mount; ceiling mount; vertical pole mount

Product Dimensions

Φ85.4 × 68.8 mm

Gross Weight

0.13 kg (0.29 lb)

Net Weight

0.09 kg (0.20 lb)

Warranty

As Per Manufacturer Terms and Condition

Dimension (CM) - L x B x H

198.9 × 80.2 × 76.2

Unit Of Measurement

1 Piece

Weight

0.13 kg

Generic Type

Dome Camera

Manufacturer Details

Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China.

Packer Details

Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China.

Importer Details

Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100

Country Of Origin

China
