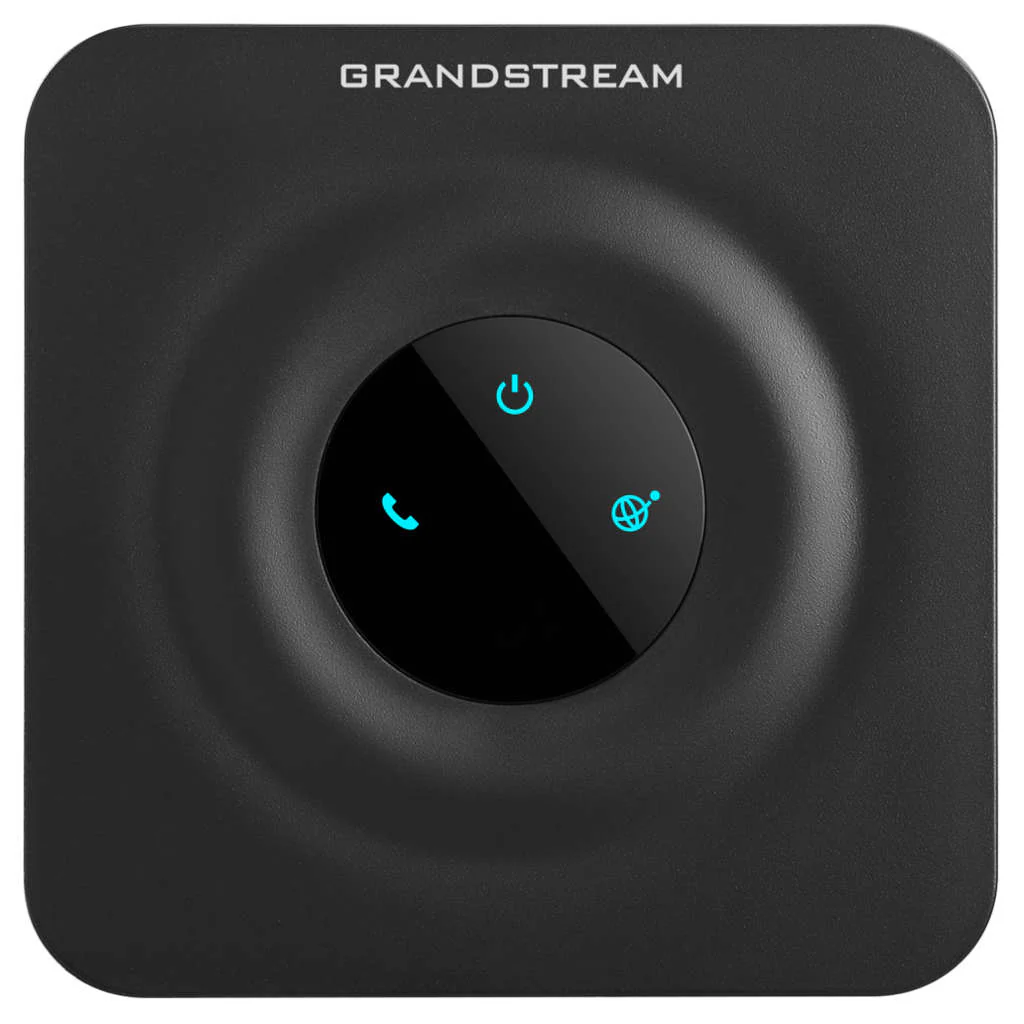

Grandstream Single Port Analog Telephone Adapter HT801
HomeStore

Grandstream Single Port Analog Telephone Adapter HT801

Grandstream Single Port Analog Telephone Adapter HT801

$51.40
Grandstream Single Port Analog Telephone Adapter HT801—
$51.40

The Story

Product Description

  • The HT801 is a single port analog telephone adapter (ATA) that allows users to create a high-quality and manageable IP telephony solution for residential and office environments

  • Its ultra-compact size, voice quality, advanced VoIP functionality, security protection and auto provisioning options enable users to take advantage of VoIP on analog phones

  • It also allows service providers to offer high quality IP service to their market

  • The HT801 is an ideal ATA for individual use as well as commercial IP voice deployments worldwide

Product Specification

Brand

Grandstream

Product Type

Telephone Adapter

Product Model

HT801

Interfaces

Telephone Interfaces

One (1) FXS port

Network Interfaces

One (1) 10/100Mbps auto-sensing ethernet port (RJ45)

LED Indicators

Power, Internet, Phone

Factory Reset Button

Yes

Voice, Fax, Modem

Telephony Features

Caller ID display or block, call waiting, flash, blind or attended transfer, forward,hold, do not disturb, 3-way conference

Voice Codecs

G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.722, G.723.1, G.729A/B, G.726,
iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation

Fax Over IP

T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax
Pass-through

Short/Long Haul Ring Load

5 REN: Up to 1km on 24 AWG

Caller ID

Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF -based CID

Disconnect Methods

Busy Tone, Polarity Reversal/Wink, Loop Current

Signaling

Network Protocols

TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH,
STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069

QoS

Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

DTMF Method

In-audio, RFC2833 and/or SIP INFO

Provisioning And Control

HTTP, HTTPS, SSH, TFTP, TR-069, secure and automated provisioning using AES
encryption, syslog

Security

Media

SRTP

Control

TLS/SIPS/HTTPS

Management

Syslog support, SSH, remote management using web browser

Physical

Universal Power Supply

Input: 100-240VAC, 50-60Hz
Output: 5.0VDC/1.0A

Environmental

Operational: 32º – 104ºF or 0º – 40ºC
Storage: 14º – 140ºF or -10º – 60ºC
Humidity: 10 – 90% Non-condensing

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x W x H

10 x 10 x 3

Unit Of Measurement

1 Piece

Weight

0.110 kg

Generic Type

Telephone Adapter

Manufacturer Details

Grand Stream Connecting The World

28, HAL 3rd stage, Indira Nagar, Bangalore - 560075

Email:[email protected]

Packer Details

Grand Stream Connecting The World

28, HAL 3rd stage, Indira Nagar, Bangalore - 560075

Email:[email protected]

Country Of Origin

India


Grandstream Single Port Analog Telephone Adapter HT801 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Grandstream Single Port Analog Telephone Adapter HT801 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Product Description

  • The HT801 is a single port analog telephone adapter (ATA) that allows users to create a high-quality and manageable IP telephony solution for residential and office environments

  • Its ultra-compact size, voice quality, advanced VoIP functionality, security protection and auto provisioning options enable users to take advantage of VoIP on analog phones

  • It also allows service providers to offer high quality IP service to their market

  • The HT801 is an ideal ATA for individual use as well as commercial IP voice deployments worldwide

Product Specification

Brand

Grandstream

Product Type

Telephone Adapter

Product Model

HT801

Interfaces

Telephone Interfaces

One (1) FXS port

Network Interfaces

One (1) 10/100Mbps auto-sensing ethernet port (RJ45)

LED Indicators

Power, Internet, Phone

Factory Reset Button

Yes

Voice, Fax, Modem

Telephony Features

Caller ID display or block, call waiting, flash, blind or attended transfer, forward,hold, do not disturb, 3-way conference

Voice Codecs

G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.722, G.723.1, G.729A/B, G.726,
iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation

Fax Over IP

T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax
Pass-through

Short/Long Haul Ring Load

5 REN: Up to 1km on 24 AWG

Caller ID

Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF -based CID

Disconnect Methods

Busy Tone, Polarity Reversal/Wink, Loop Current

Signaling

Network Protocols

TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH,
STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069

QoS

Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

DTMF Method

In-audio, RFC2833 and/or SIP INFO

Provisioning And Control

HTTP, HTTPS, SSH, TFTP, TR-069, secure and automated provisioning using AES
encryption, syslog

Security

Media

SRTP

Control

TLS/SIPS/HTTPS

Management

Syslog support, SSH, remote management using web browser

Physical

Universal Power Supply

Input: 100-240VAC, 50-60Hz
Output: 5.0VDC/1.0A

Environmental

Operational: 32º – 104ºF or 0º – 40ºC
Storage: 14º – 140ºF or -10º – 60ºC
Humidity: 10 – 90% Non-condensing

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x W x H

10 x 10 x 3

Unit Of Measurement

1 Piece

Weight

0.110 kg

Generic Type

Telephone Adapter

Manufacturer Details

Grand Stream Connecting The World

28, HAL 3rd stage, Indira Nagar, Bangalore - 560075

Email:[email protected]

Packer Details

Grand Stream Connecting The World

28, HAL 3rd stage, Indira Nagar, Bangalore - 560075

Email:[email protected]

Country Of Origin

India
