$2.53The Story

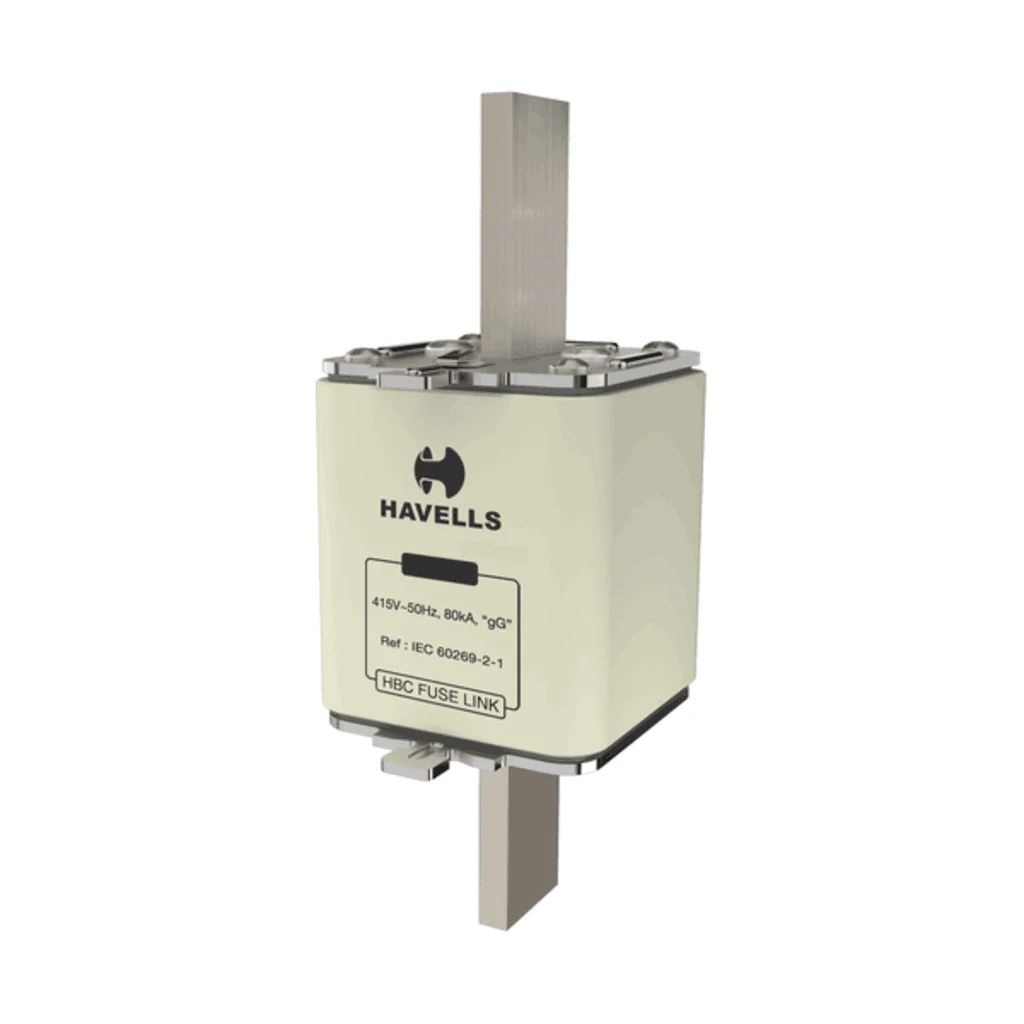

Product Description
ISI Marked
Third Party guarantee on the Quality
Low Watt Loss
Provides Power Saving
Choice of Application
Excellent AC and DC performance
DETAILED FEATURES
Interchangeable with compatible brands
Enables easy replacement and offers flexibility
Product Specification
TECHNICAL SPECIFICATION
Basic Features
Standard conformity: IS 13703-1 & 2-1 IEC 60269-1 & 2-1
Rated operational voltage: 415V AC
Rated frequency: 50Hz
Utilisation Category: gG
Type of Fuse: DIN
IS Size: 02
Rating Range: 200A – 425A
BS Type: Not Applicable
Type of Tag: Central
|
IS Size |
Rated Voltage (Volts Ac) |
Breaking Capacity (kA) |
Rating (Amps) |
Cat No |
|
02 |
415 |
80 |
200 |
IHHCD02200 |
|
250 |
IHHCD02250 |
|||
|
315 |
IHHCD02315 |
|||
|
350 |
IHHCD02350 |
|||
|
400 |
IHHCD02400 |
|||
|
425 |
IHHCD03425 |
