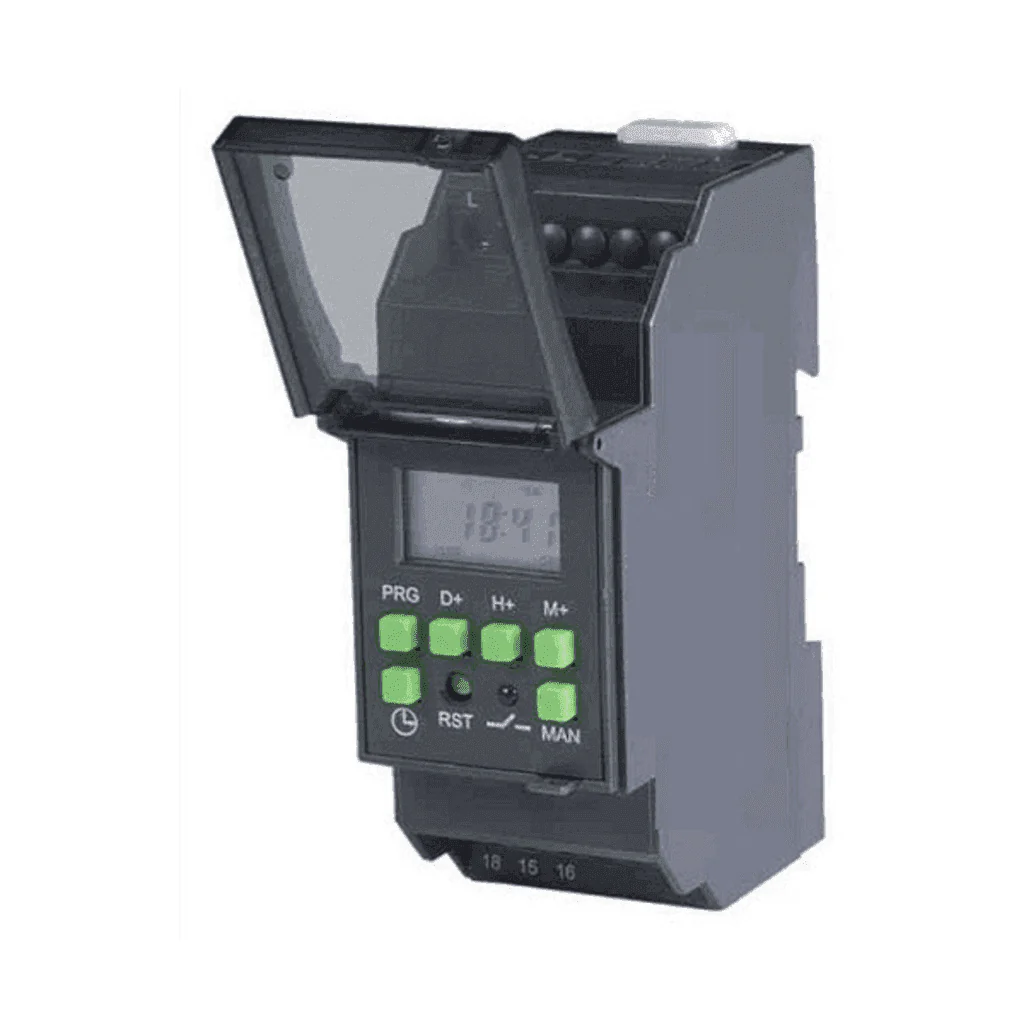

L&T [ Lauritz Knudsen ] Crono Digital Time Switch

L&T [ Lauritz Knudsen ] Crono Digital Time Switch

L&T [ Lauritz Knudsen ] Crono Digital Time Switch

Select Cat. No

From $8.48

Original: $28.27

-70%

L&T [ Lauritz Knudsen ] Crono Digital Time Switch—

$28.27

$8.48

The Story

Product Description

Supply Voltage	110 – 240 VAC
Supply Variation	-20% to +10%
Frequency	50/60 Hz
Power Consumption (Max.)	6 VA
Number of Programs	25 ON/OFF programs
Minimum Switching Time	1 min
Number of Operating Modes	5
Description Modes	AUTO - Program Run ON AUTO – Instant ON up to next Auto Event AUTO OFF – Instant OFF up to next Auto Event ON – Continuous ON OFF - Continuous OFF
Display	3 Lines Text LCD
DST	Programmable
Clock accuracy	+/- 2 s/day max. over the operating temp.range
Power reserve from factory	6 Years
Contact Arrangement	1 C/O
Contact Rating	16 A (NO) and 5 A (NC) @ 240 VAC / 24 VDC
Utilization category: AC - 15	Rated Voltage (Ue): 120/240 V, Rated Current (le):3/1.5 A
Utilization category: DC - 13	Rated Voltage (Ue): 24/250 V, Rated Current (le): 2.0/0.22/0.11 A
Operating Temperature	-10° C to +55° C
Storage Temperature Range	-10° C to +60° C
LED Indication	Red LED --> Relay ON
Dimension (WxHxD) (in mm)	36x90x65
Weight	110 g
Applications	Ideal for lighting applications like street lighting, Advertising Displays, Glowsigns etc..

Product Specification

Cat. No	Voltage Rating	Contact Arrangement
67DDT0	110 - 240 VAC	1 C/O
6GHDT0	24 VDC	1 C/O
69HDT0	12 VDC	1 C/O

Description

Product Description

Supply Voltage	110 – 240 VAC
Supply Variation	-20% to +10%
Frequency	50/60 Hz
Power Consumption (Max.)	6 VA
Number of Programs	25 ON/OFF programs
Minimum Switching Time	1 min
Number of Operating Modes	5
Description Modes	AUTO - Program Run ON AUTO – Instant ON up to next Auto Event AUTO OFF – Instant OFF up to next Auto Event ON – Continuous ON OFF - Continuous OFF
Display	3 Lines Text LCD
DST	Programmable
Clock accuracy	+/- 2 s/day max. over the operating temp.range
Power reserve from factory	6 Years
Contact Arrangement	1 C/O
Contact Rating	16 A (NO) and 5 A (NC) @ 240 VAC / 24 VDC
Utilization category: AC - 15	Rated Voltage (Ue): 120/240 V, Rated Current (le):3/1.5 A
Utilization category: DC - 13	Rated Voltage (Ue): 24/250 V, Rated Current (le): 2.0/0.22/0.11 A
Operating Temperature	-10° C to +55° C
Storage Temperature Range	-10° C to +60° C
LED Indication	Red LED --> Relay ON
Dimension (WxHxD) (in mm)	36x90x65
Weight	110 g
Applications	Ideal for lighting applications like street lighting, Advertising Displays, Glowsigns etc..

Product Specification

Cat. No	Voltage Rating	Contact Arrangement
67DDT0	110 - 240 VAC	1 C/O
6GHDT0	24 VDC	1 C/O
69HDT0	12 VDC	1 C/O
