The Story
ProductDescription
-
Key Features
-
3¾ Digits
-
4000 Counts
-
TRMS
-
Auto Ranging
-
AC Current upto 600A
-
AC Voltage upto 600V
-
DC Voltage upto 600V
-
Temperature
-
Capacitance upto 4mF
-
Frequency upto 4KHz
-
Resistance upto 40MΩ
-
Audible Continuity
-
Diode Test
-
Data Hold
-
Backlight Display
-
Torchlight for Clamp
-
NCV (LED, Buzzer & EF Strength)
-
Auto Power Off
-
Low Battery Indication
-
Jaw Opening : Cable Dia. 30mm (maximum)
ProductSpecification

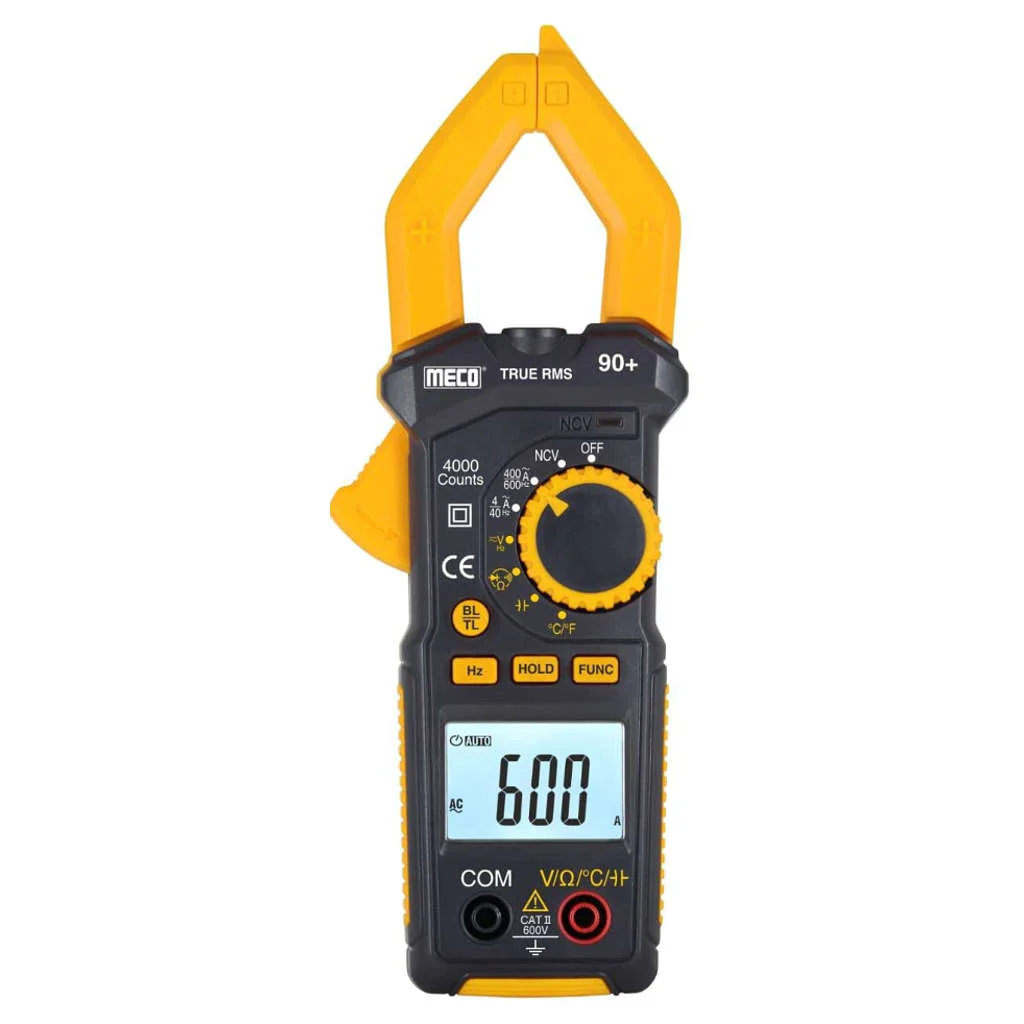

| Brand | Meco |
| Product Type | Digital Clamp Meter |
| Product Model | 90+ |
| Ranges | |
| AC Current | 4A, 40A, 400A, 600A |
| Accuracy | ±(2.0%rdg+5dgt) on all ranges except |
| AC Response | 40Hz ~ 2KHz |
| Overload | 600A AC maximum for 1 min |
| AC Voltage | 4V, 40V, 400V, 600V |
| Accuracy | ±(1.2%rdg+5dgt) |
| AC Response | 40Hz ~ 2KHz |
| DC Voltage | 400mV, 4V, 40V, 400V, 600V |
| Accuracy | ±(0.8%rdg+5dgt) |
| Temperature | -20°C to 1000°C / -4°F to 1832°F |
| Accuracy | ±(3%rdg+5dgt) |
| Capacitance | 4nF, 40nF, 400nF, 4μF, 40μF, 400μF, 4mF |
| Accuracy | ±(3%rdg+5dgt) Note : 4nF for Reference only |
| Resistance | 400Ω, 4kΩ, 40KΩ, 400kΩ, 4MΩ, 40MΩ (Auto Ranging) |
| Accuracy | ±(1.2%rdg+5dgt) |
| Audible Continuity | 50Ω (approximate) |
| Diode Test | 1.0 ±0.6mA (approximate) |
| Power | Two 1.5V “AAA” Battery |
| Low Battery | Sign is indicated |
| Battery Life | 200 hours typical |
| Safety Standard | CAT II 600V |
| Accessories | One Pair of Test Leads, Instruction Manual, Carrying Case, Battery (installed) K Type Thermocouple (upto 260°C) |
| Dimension | 190 x 71 x 30 mm (Approximate) |
| Weight (Including Battery) | 190 gms (Approximate) |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) L x B x H | 19 x 71 x 3 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.200 kg | Generic Name | Digital Clamp Meter |
| Manufacturer Details | Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
| Packer Details | Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
| Country Of Origin | India |
