The Story
ProductDescription
-
Function
-
Display Illumination [Backlight]
-
Min / Max, Measurement / Continuous Measurement
-
Addition / Subtraction
-
Pythagoras Measurement
-
Area / Volume Calculation
-
Wall Area Measurement
-
Triangular Area Measurement
-
Stake out Measurement
-
Front / Back Benchmark Measuring Datum Selection
-
Display Screen
-
Laser Emission Indicator
-
Reference Edge [Front]
-
Reference Edge [Behind]
-
Stored Data Indicator
-
Stake out Function
-
MAX / MIN Measurement
-
Indirect measuring / Pythagoras
-
Theorem Measurement
-
Triangular Area
-
Timer
-
Silence
-
Area / Volume Function
-
Battery Indicator
-
The third Display Line
-
The Second Display Line
-
The First Display Line
-
Main Display Line (Result)
ProductSpecification
| Brand | Meco |
| Product Type | Laser Distance Meter |

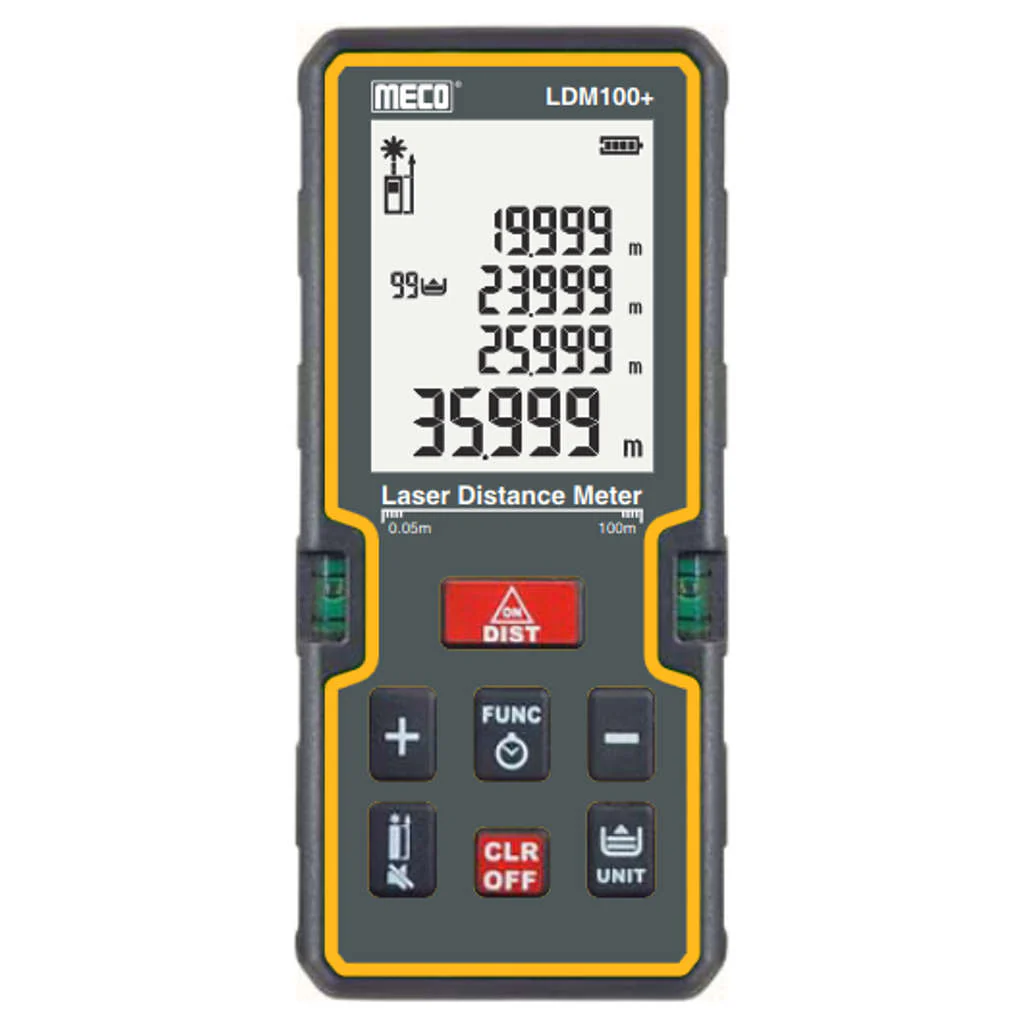

| Product Model | LDM100+ |
| Range | 0.05 ~ 100 m |
| Measuring Accuracy Upto 60 / 100m [In The Room] | ±1.5mm |
| Measurement Time | 0.25 ~ 1s |
| Smallest Unit Displayed | 1 mm |
| Laser Class | Class II |
| Laser Type | 630 ~ 670, <1mW |
| Auto Laser Switch Off | After 30 second |
| Automatic Switch Off | After 3 Minutes of Inactivity |
| Historical Storage | 99 |
| Storage Temperature | -20°C ~ 60°C |
| Operating Temperature | -10°C ~ 50° C |
| Power | 1.5V AAA x 2 Batteries |
| Battery Life | Up to 5000 Measurements |
| Rating [ Dust Proof & Splash Proof ] | IP40 |
| Accessories | 1.5V AAA X 2 Batteries [Installed], Drawstring Pouch, Instruction Manual, Wristlet |
| Dimension | 110 x 44 x 26 mm (Approximate) |
| Weight (Including Battery) | 70 gms (Approximate) |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) L x B x H | 11 x 4.4 x 2.6 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.100 kg |
| Generic Name | Laser Distance Meters |
| Manufacturer Details | Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
| Packer Details | Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
| Country Of Origin | India |
