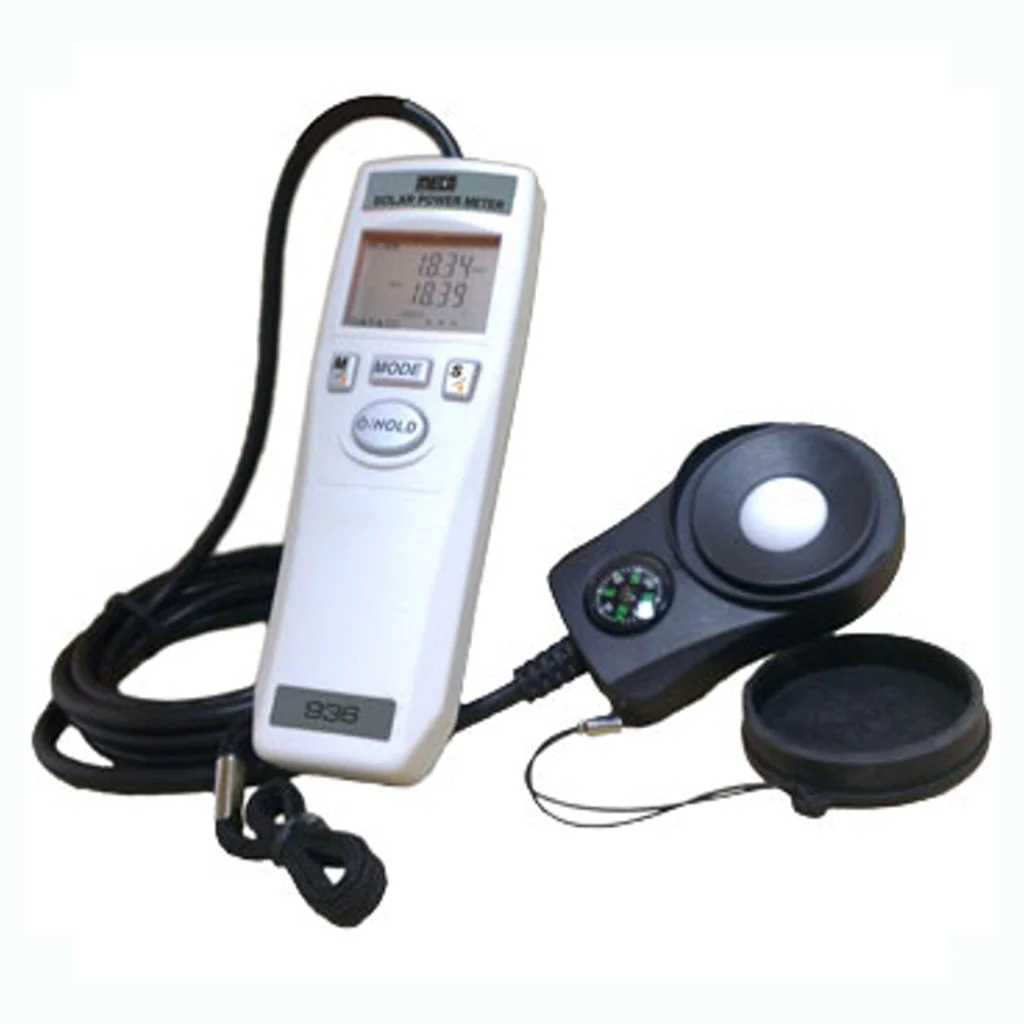

Meco Solar Power Meter (Irradiance Meter) With Orientation And Tilt Angle 936
HomeStore

Meco Solar Power Meter (Irradiance Meter) With Orientation And Tilt Angle 936

Meco Solar Power Meter (Irradiance Meter) With Orientation And Tilt Angle 936

$55.74

Original: $185.81

-70%
Meco Solar Power Meter (Irradiance Meter) With Orientation And Tilt Angle 936—

$185.81

$55.74

The Story

Product Description

  • This instrument is designed to measure Solar Power in the range from 400 to 1100 nanometers

  • The good Spectral Range, Orientation and Angular detection of meter allow users to conduct the most precise quantitative measurements of Solar Power Radiation

  • Solar Power Measurement with Orientation and Tilt Angle

  • Easy measurement for rate of daylight penetration

  • Auto change for measuring range

  • Auto power off with disable function

  • Instantaneous display Ave/Min/Max values

  • 20 points memory

  • Socket of tripod mounting

  • Magnetic mount

  • Backlit LCD and 4 digits triple display

  • Applications

  • Solar Power Plant

  • Solar radiation measurements

  • Solar power research for location of the solar panels or solar water heater

  • Physics and optical laboratories

  • Meteorology

  • Agriculture

  • Windows performance - calculate the rate of daylight penetration

Product Specification

Brand

Meco

Product Model

936

Product Type

Solar Power Meter

Sensor

High Sensitivity Silicon Photodiode

Spectral Response

400~1100 nm

Range

2 2 0~2000 W/m (0~ 634 BTU / ft .h)

Accuracy (At 23°C, 60% Rh)

±10W/m2 (±3 BTU/ ft2 .h) or ±5% (whichever is greater)


Resolution

0.00~99.99 W/m2 : 0.01 W/m2,

100.0~999.9 W/m2 : 0.1 W/m2 ,1000~2000 W/m2 : 1 W/m2

0.00~99.99 BTU/ft2.h : 0.01 BTU/ ft2.h,

100.0~634.0 BTU/ft2.h : 0.1 BTU/ ft2.h

Angular Accuracy

Cosine Corrected < 7% (angle < 60°)

Tilt Angle Range

0~90°

Tilt Angle Accuracy (at 23°C, 60% Rh)

±1.2°(< 60°), Additional Temperature Induced Error±0.1°/°C from23°C

Sample Time

Approx. 0.4 Second

Operation Temp. & Relative Humidity

0°C~50°C (32°F~122°F) Less than 80% RH

Store Temp. & Relative Humidity

-10°C~60°C (14°F~140°F) Less than 85% RH

Auto Power Off

Enable or Disable (Auto Power off after approx. 10 minutes)

Battery Life

Approx. 30 Hours for Continuous Use

Max / Min / Avg

Yes

Data Hold

Yes

Low Battery Indication

Yes

Backlight Function

Yes

Zero Adjustment

Yes

Over Range Indication

Yes (“--HI--“)

Memory

Yes ( 20 Points Memory )

Compass

Yes

Solar Transmission Measurement

Yes

Tripod Socket

Yes

Accessories

9V Battery, Instruction Manual, Carrying Case

Dimensions

Main Instrument : 140 x 49 x 29 mm (approx.) Sensor Probe : 83 x 54 x 26 mm (approx.)

Weight

220gms Including Battery (approx.)

Warranty

1 Year
